- Stock: 2-3 Days
- Model: LH251
Available Options

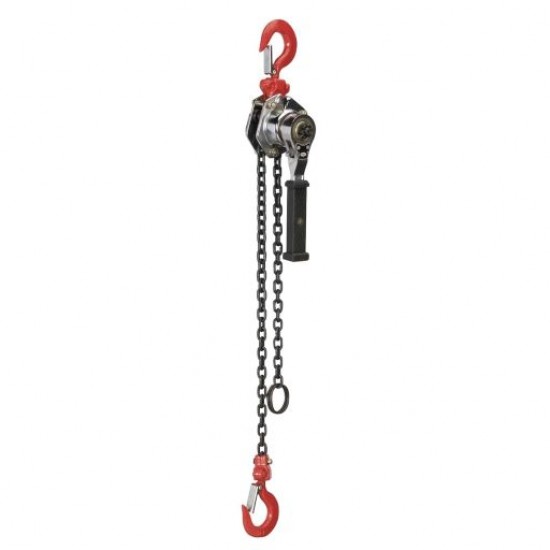

Manual Lever Hoist LH251 have
rugged construction features, drop-forged and heat-treated pinion gear with
totally enclosed mechanisms. Lever hoist equipped with heavy-duty brake and high-quality
alloy steel chain for durable and safe operation. Free-chaining feature permits
slack in the load chain to be taken up by hand before engaging the ratchet arm.
(Lever Hoist Supplied Only).

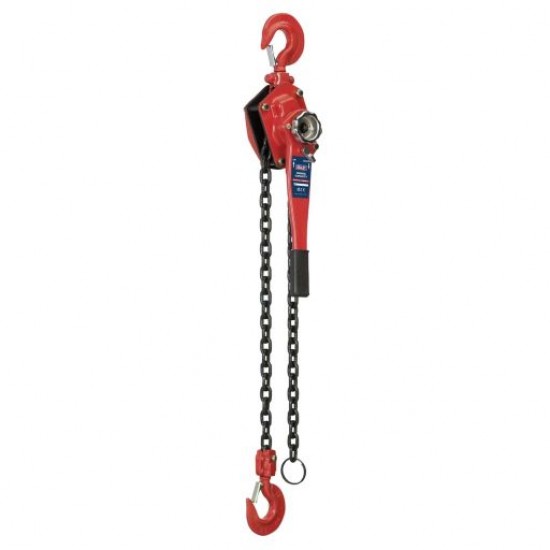

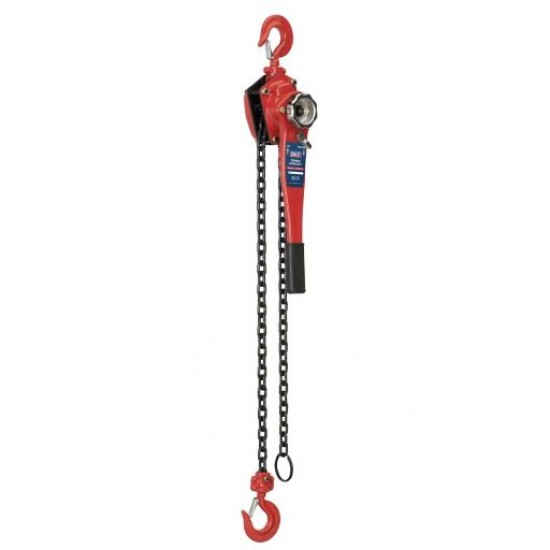

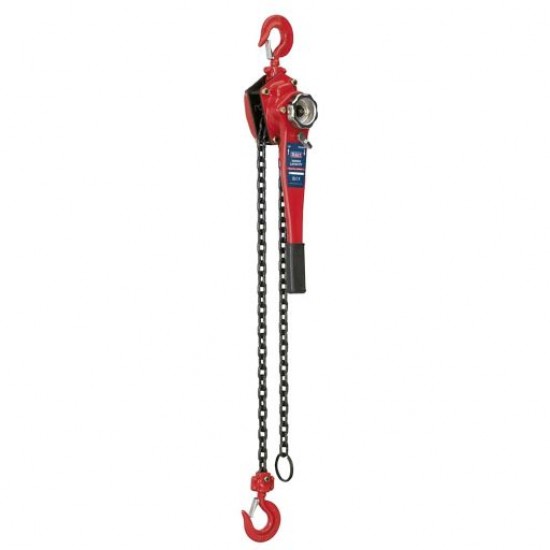

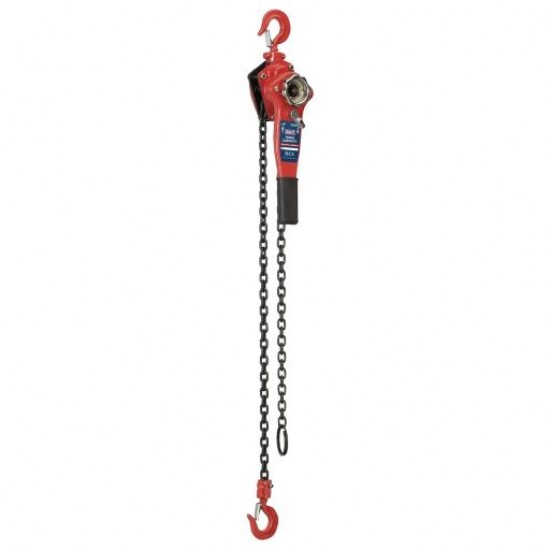

Model No. | LH251 | LH750 | CB1000 | CB1500 | CB3000 |
Capacity | 250kgs | 750kgs | 1000kgs | 1500kgs | 3000kgs |
Test Load | 375kgs | 1125kgs | 1500kgs | 2250kgs | 4500kgs |
Pull On Lever Load | 25kgf | 14kgf | 24kgf | 24kgf | 33kgf |
Load Chain Diameter | 4mm | 6mm | 8mm | 8mm | 10mm |
Chain Falls | 1 | 1 | 1 | 1 | 1 |
Chain Length | 1.2m | 1.5m | 1.5m | 1.5m | 1.5m |
Overall Width | 85mm | 136mm | 160mm | 160mm | 180mm |
Overall Depth | 92mm | 148mm | 172mm | 172mm | 200mm |
Lever Length | 160mm | 280mm | 410mm | 410mm | 410mm |
Head Room | 220mm | 275mm | 295mm | 295mm | 400mm |
Operating Clearance | 60mm | 99mm | 104mm | 104mm | 108mm |
Hook Aperture | 20mm | 25mm | 30mm | 30mm | 40mm |
Max Hook Capacity Dia | 30mm | 37mm | 45mm | 45mm | 50mm |
Weight | 1.8kgs | 7.0kgs | 12kgs | 12kgs | 19kgs |
