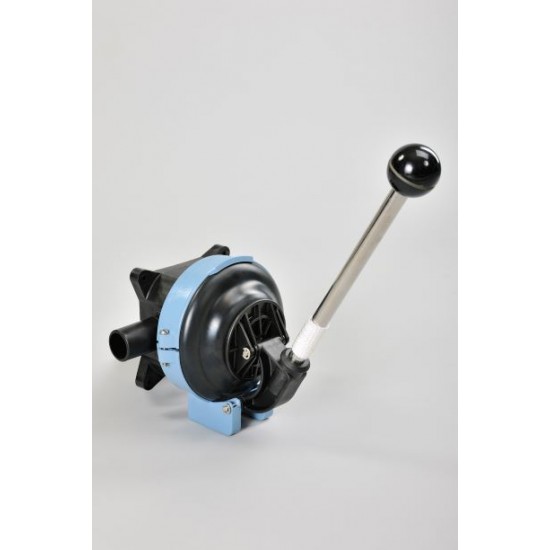

Whale GUSHER TITAN Diaphragm Pump DPND4418

DPND4418 high output, manually operated single diaphragm pump – suitable for water, seawater, contaminated/dirty water, light oils, diesel, kerosene. Manufactured by WHALE.

Model: WHALE ‘GUSHER TITAN’

One of our ranges of self-priming, lightweight yet extremely robust diaphragm pumps for general industry, construction, agriculture, maintenance and marine applications. These pumps are easy to move and carry but will transfer fluids at a very high output. They are simple to dismantle and service, with service kits available from stock. Please contact our sales office for extras such as hoses, diaphragms, service kits, etc. Manufactured by WHALE.

• Fluid: water ~ seawater ~ contaminated/dirty water ~ light oils ~ diesel ~ kerosene
• Viscosity: 40 cSt
• Flowrate: 1.75 litre/stroke – 105 litres/minute
• Hose connections: 38 mm inlet & outlet
• Wetted parts: acetal ~ co-polymer ~ stainless steel ~ polypropylene ~ nitrile ~ neoprene ~ bronze
• Mounting dimensions:  7 mm dia. holes – 187 mm between centres
• Suction lift/discharge head: 4 metres / 4 metres
• Weight: 1.5 kg

Additional info:

• Single diaphragm
• Can be used vertically or horizontally
• Lightweight & robust
• Hoses available as optional extra
