- Stock: 12-15 Days
- Model: TR120TU
Available Options

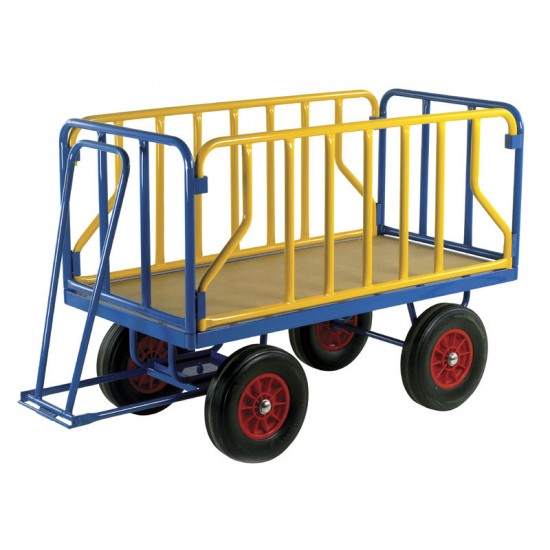

Turntable Truck With Tubular
Cage TR120TU with detachable mesh sides are the workhorses within
engineering, logistics and stores areas up and down the country. Turntable
trucks with their long platforms manoeuvre heavy items effortlessly and safely
within the workplace with minimum effort required by the operator due to the
200mm/260mm/250mm/400mm dia wheeling. Trucks have a 350kg/500kg/750kg/1000kg
capacity and a choice of (Rubber tyred / Pneumatic tyred wheeling). Trucks fitted
with loop handle.
· Fixed tubular ends -
detachable tubular sides
· Sides 610mm high
· 3 deck sizes - MDF or steel
decks
· Front turntable steering
with loop handle
· Colour: Blue epoxy chassis
& ends - Yellow epoxy sides
· Solid or pneumatic tyres
Deck Size mm | Deck Height mm | Cap kg | Wheel Dia mm | Tyre Type | MDF Deck Weight kgs | Order Ref | Steel Deck Weight kgs | Order Ref |
1200 x 600 | 425 | 350 | 200 | Solid | 59 | TR120TU | 64 | TR220TU |
1200 x 600 | 450 | 500 | 260 | Pneu | 61 | TR121PTU | 46 | TR221PTU |
1200 x 600 | 450 | 500 | 250 | Solid | 63 | TR121STU | 48 | TR221STU |
1500 x 750 | 500 | 750 | 400 | Solid | 104 | TR126TU | 120 | TR226TU |
1500 x 750 | 500 | 750 | 400 | Pneu | 81 | TR126PTU | 97 | TR226PTU |
1500 x 750 | 500 | 1000 | 400 | Solid | 114 | TR127TU | 130 | TR227TU |
1500 x 750 | 500 | 1000 | 400 | Pneu | 91 | TR127PTU | 107 | TR227PTU |
2000 x 1000 | 500 | 1000 | 400 | Solid | 152 | TR130TU | 181 | TR230TU |
2000 x 1000 | 500 | 1000 | 400 | Pneu | 130 | TR130PTU | 159 | TR230PTU |
