- Stock: 2-3 Days
- 450V Electrical Matting PDF
- Model: RE691
Available Options

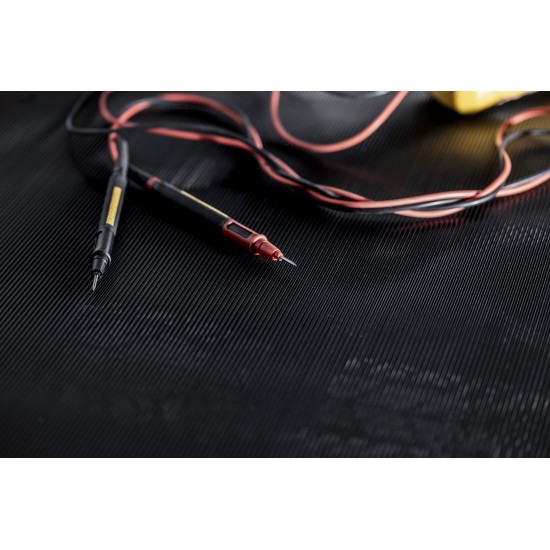

Electrical Rib Safety
Matting RE691 is manufactured to protect workers from electric shocks and build up of
static. Matting has a fine ribbed surface to ensure positive foot grip at all
time eliminating slips. Matting has regulation standard stamped on the back at
1000mm intervals.
Tested to 11KV and a
working voltage of 415v.
Overall Thickness 6mm
; Supplied in 10m lengths with 3 widths available.
Features:-
· Non-conductive
rubber safety matting designed to provide insulation and protect workers from
electric shock
· Slip
resistant ribbed surface
· Tested
to 11KV
· Working
voltage 450V
· Overall
thickness 6mm
Tests:-
Fully electrically tested
and certified to 11KV, recommended safety working voltage of 450V
Shore Hardness A
+/-5, 70°
Density SG (g/cm²),
1.5
Tensile (kg/cm²), 40
Elongation at break %, 200
Abrasion resistance (mm3),
180
Operating Temperature, -20
- +70 (°C)
