- Stock: 2-3 Days
- Model: EK2436
Available Options

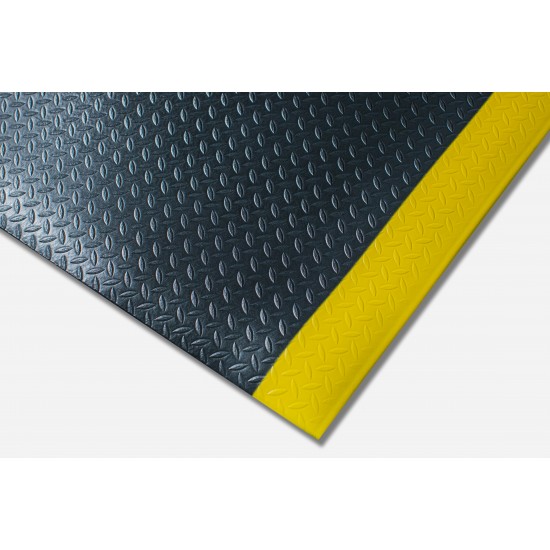

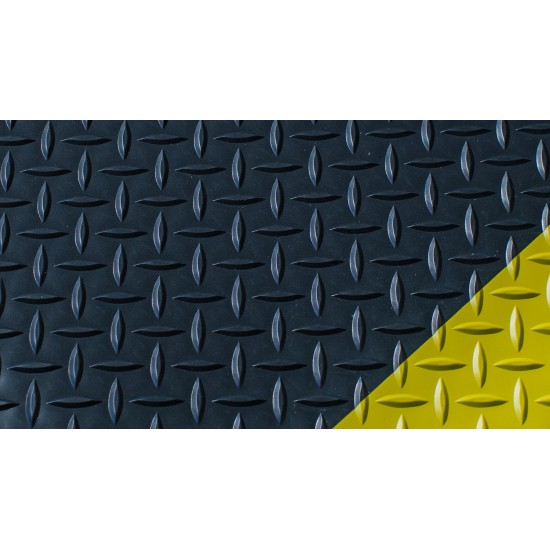

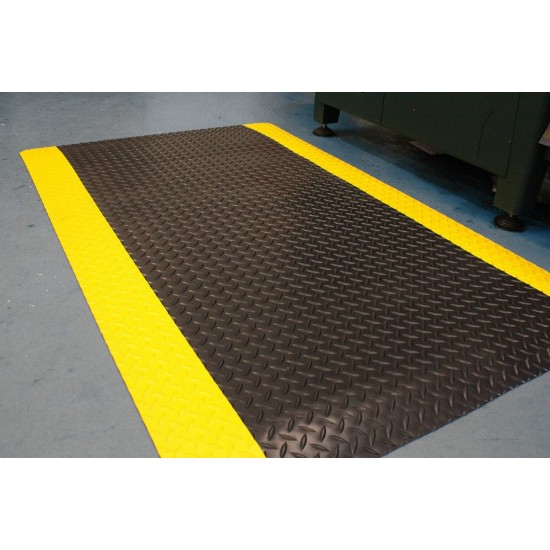

ESD Kumfi Tough EK2436 is formulated to dissipate static
electricity. Simple worker tasks - working, walking, or even sitting on certain
types of stools - creates static electric. Left unchecked, static can discharge
into static sensitive equipment, potentially causing damage.
Conductive/Anti-static matting drains static from workers, preventing
unpleasant static shocks and safeguarding equipment.
Colour: All Black or Black/Yellow Edge
· Anti-fatigue
vinyl sponge matting designed to provide anti-static protection in light duty
applications.
· Ideal

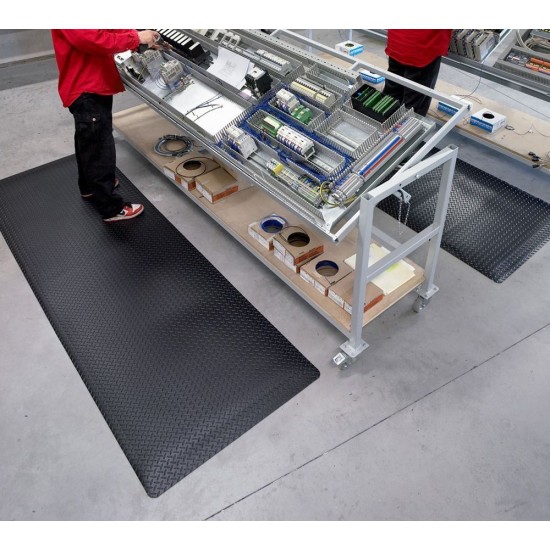

for assembly lines, computer rooms, hospitals and photocopy areas.
· Meets
IEC61340-4-1 (category DIF) measured resistance Rg 106-109 Ω, Rp 106-109 Ω.
· Electrostatic
charge (walking test) meets ISO6356 and EN1815.
· Overall
height 9.4mm.
Product Testing
· Compression
deflection U.S. 1.4 kg/cm2 2.8 kg/cm2
· Foam
battery ASTM D3574
· Abrasion
resistance ASTM D3884-01 500 Cycles 5000 Cycles
· Static
coefficient of friction ASTM C1028-96 0.79
· Elongation
ASTM D412 125%
· Breaking
load ASTM D412
· Graves
tear strength ASTM D 1004
· Hardness
ASTM D2240-02
· Anti-slip
DIN 51130 and BG-RULE BGR181
Fire Testing
· Critical
radiant flux ASTM E-648
· Fire
retardancy DIN4102 EN 13501-1
· Flammability
test ASTM D2859
Sustainability
· Recyclable
material
· Reach
Compliant (Registration, Evaluation, Authorization and Restriction of
Chemicals)
